Accelerate Evaluation and Integration
Evaluate ITDev's IPMX FPGA IP using proven reference designs based on the AMD ZynqTM UltraScale+TM ZCU106 platform.
Providing a known-good implementation of both transmitter and receiver functionality, our reference designs help engineering teams reduce development risk, validate interoperability and accelerate time to market.
Download Reference Design details | Contact an Engineer
Available Reference Designs
HDMI IPMX Transmitter Reference DesignA complete implementation demonstrating IPMX transmission from HDMI video sources onto standard IP networks. Features
Learn more about IPMX Transmitter IP |
HDMI IPMX Receiver Reference DesignA complete implementation demonstrating reception of IPMX streams and output to HDMI display interfaces. Features
Learn more about IPMX Receiver IP |
Available on a time-limited basis to support evaluation, integration and interoperability testing.
Why use a Reference Design?
Reference designs provide a proven implementation that can be used throughout the development lifecycle.
- Evaluate
Quickly assess functionality and suitability for your application.
- Develop
Use a known-good architecture as the starting point for your own hardware platform.
- Validate
Compare your implementation against a proven reference design.
- Demonstrate
Verify interoperability and system performance before deployment.
Reference Platform

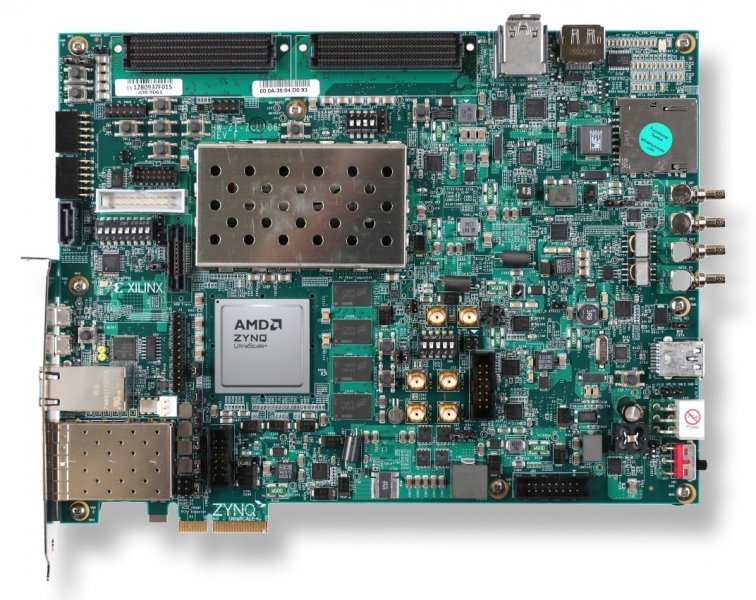

AMD ZynqTM UltraScale+TM ZCU106
The current reference design platform demonstrates the complete IPMX solution using industry-standard hardware.
Platform Features
- AMD ZynqTM UltraScale+TM MPSoC
- HDMI 2.0 interfaces
- Video resolutions up to 4kp30
- 10Gb Ethernet connectivity
- Integrated software environment
- Support for both Tx and Rx evaluation
Note: The IPMX IP is physically constrained by the reference board. The IP can support higher levels of bandwidth and pixels.
What's Included
The reference design package includes:
- Encrypted FPGA implementation
- Supporting software
- AMD IP integration package
- Product documentation
- Build and configuration information
- Integration guidance
Reduce Time to Market
Whether you're evaluating IPMX technology, developing a new professional AV product, or validating interoperability with existing equipment, ITDev's reference design provides a proven route to faster development and lower project risk.
