Generate standards-based IPMX streams for professional AV applications with a production-ready FPGA IP core designed for rapid integration and deployment.

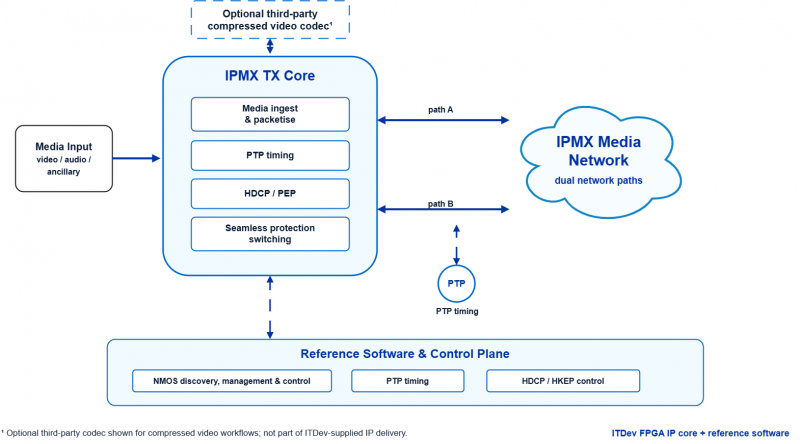

ITDev's IPMX Transmitter FPGA IP enables video, audio and ancillary data to be transported across IP networks using the VSF TR-10 technical recommendations.
It is intended for professional AV products that need a proven route to market without the complexity of building an IPMX implementation from scratch.
Also available ITDev's IPMX Receiver FPGA IP.
Simple Licensing
Single FPGA IP solution with no hidden licensing fees. Everything needed to implement IPMX functionality is supplied as part of the core package.
Features
- Based on the VSF TR-10 suite of technical recommendations
- Supports uncompressed video transport
- Optional compressed video workflows
- Synchronous & Asynchronous Video
- Precision Time Protocol (PTP) support
- NMOS discovery, management and control
- HDCP Protection - Coming Soon
- Designed for sub-frame latency operation
- Supports scalable network operation from 1G to 100G
Benefits
- Simple streaming or native video input to IP-out integration
- Support for third-party compressed video codecs
- Single IP solution with no hidden licensing fees
- Support for standards-based IPMX interoperability
- Ongoing standards compliance development
- Faster time to market than developing an in-house implementation
- Both Tx and Rx included as part of the standard IP core solution to allow bi-directional traffic
- Reference designs available to accelerate evaluation
Deliverables
- Encrypted Netlist
- Supporting Software
- AMD IP integration package
- Product guide
Reference Design
Evaluate the IPMX Transmitter IP using the AMD ZynqTM UltraScale+TM ZCU106 MPSoC reference design, demonstrating HDMI I/O and network operation up to 10G.
Ready to evaluate IPMX Transmitter IP?
Speak to ITDev about your application, integration requirements or reference design needs.
